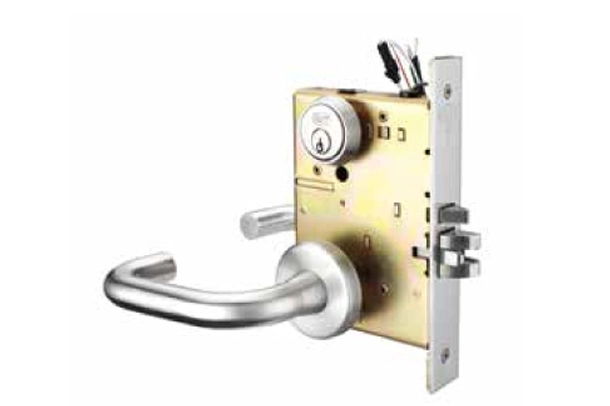

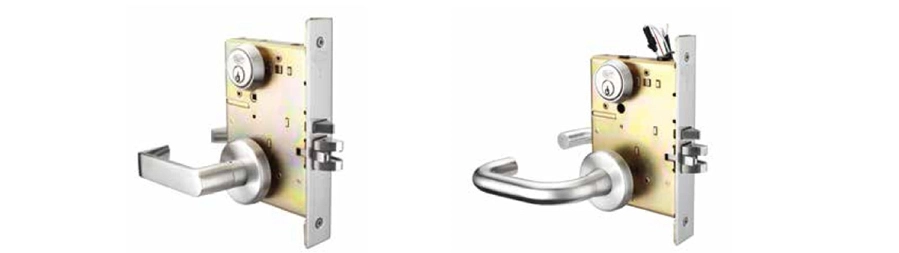

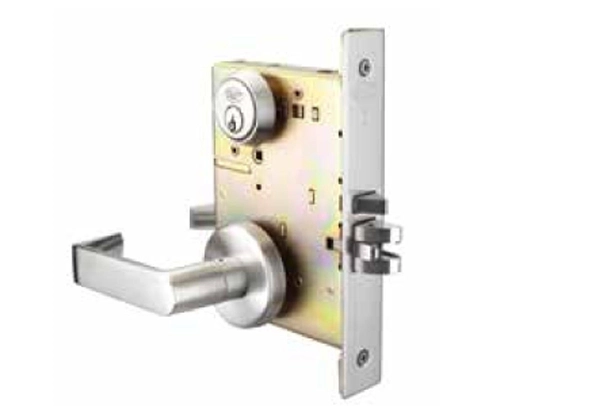

American Standard Door Locks

1. Satinless steel latch and deadbolt. Reversible latch rotates 180 degrees for easy handing change without opening case. Precision-engineered curve provides enhanced cycle life with reduced wear to the strike.

2. Non-handed cylinder retainer and stainless steel auxiliary bolt for ease of changing hand.

3. Armored front completely surrounds latch and deadbolt providing increased lateral strength. Staked assembly design allows the armored front to self-align with the door bevel during installation.

4. Enhanced case integrity achieved through five case cover screws, plus interlocking armored front and cover design at the latch Roller bearing hub mechanism provides smooth, wear resistant operation Locking toggle includes clear indication of locked "and" unlocked" states. Case, cover, and armored front manufactured from 2.45mmcold rolled steel for strength and durability Two position hub toggle design determines whether each hubis always locked, always unlocked, or locked by key for easy handing change without opening case Lever return spring mechanism located intrim for enhanced protection against lever droop, providing a firm, positivereturn of the lever to the horizontal position.

5. Self-aligning trim mechanism for fast. easy, and accurate installation.· Curved lip strike and strike box assembly provides an aesthetic solution to complement field reversible case.

6. Solid machined cylinder rings with tension spring provide resistance to wrenching of cylinder, Cylinder security screw prevents removal of cylinder without first removing interchangeable core.
